Brand Name : MAZS
Place of Origin : China
Certification : CE, ISO
MOQ : 1 Set
Packaging Details : wooden case, polystyrene foam and other protective materials
Delivery Time : 60 days to 120 days
Payment Terms : T/T or L/C
Supply Ability : 50 to 60 sets per month
Price : RMB/USD/EURO
Weight : 2500KG
Max Bending Angle : 135°
Max Bending Thickness : 2mm
Control Type : CNC
Max Bending Speed : 8m/min
Voltage : 380V
Dimension : 6000*3000*2500mm
Motor Power : 4.5KW
Items | Technical Parameters for Panel Bending Center | ||
MAY-1415 | MAY-2015 | MAY-2515 | |
Feeding method | Pressing arm | Pressing arm | Pressing arm |
Positioning method | Y axis double lift automatic positioning tools | Y axis double lift automatic positioning tools | Y axis double lift automatic positioning tools |
Max. bending speed | 0.2 s/time | 0.2 s/time | 0.2 s/time |
Max. bending width | 1400mm | 2000mm | 2500mm |
Max. bending height | 170mm | 170mm | 170mm |
Rated voltage | 380V | 380V | 380V |
Total motor power | 40Kw | 77Kw | 79Kw |
Average power | about 1.9Kw | about 2.5Kw | about 2.9Kw |
Noise | 50dB | 50dB | 50dB |
Machine size | 440*190*290cm | 510*265* 330cm | 565* 300* 340cm |
Total machine weight | about 12t | about 18t | about 23t |
Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 2.0mm | UST 515N/mm2 304 stainless steel 2.0mm | UST 515N/mm2 304 stainless steel 2.0mm |
UST 410N/mm2 cold panel 3.0mm | UST 410N/mm2 cold panel 3.0mm | UST 410N/mm2 cold panel 3.0mm | |
Minimum panel thickness | 0.35mm | 0.35mm | 0.35mm |
Four sides forming minimum inner size | 160* 210mm | 160* 210mm | 160* 210mm |
Double sides forming minimum inner size | 160mm | 160mm | 160mm |
Max. bending size | 1400* 1400mm | 2000*1500mm | 2500*1500mm |
Axis qty. | standard synchronized 15 axis | standard synchronized 15 axis | standard synchronized 15 axis |
Power hinge knife | standard | standard | standard |
Packaging and Shipping for Automatic Panel Bender
The Automatic Panel Bender is shipped in a double-walled, shock-resistant corrugated cardboard packaging. The packaging is designed to protect the Panel Bender from any external damage during transit. The package contains all the necessary components and tools for installation and safe operation.
Once the Panel Bender is packed, it is shipped to the customer’s address using reliable courier services. The customer receives a tracking number to track the status of the shipment.
![]() |

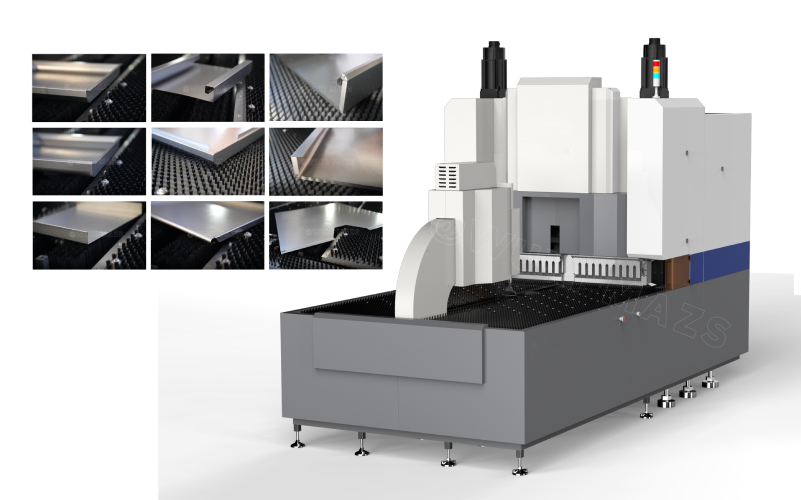

15 Axis Automatic Panel Bender Accurate Steel Plate Bender 2000mm 380V Images |
