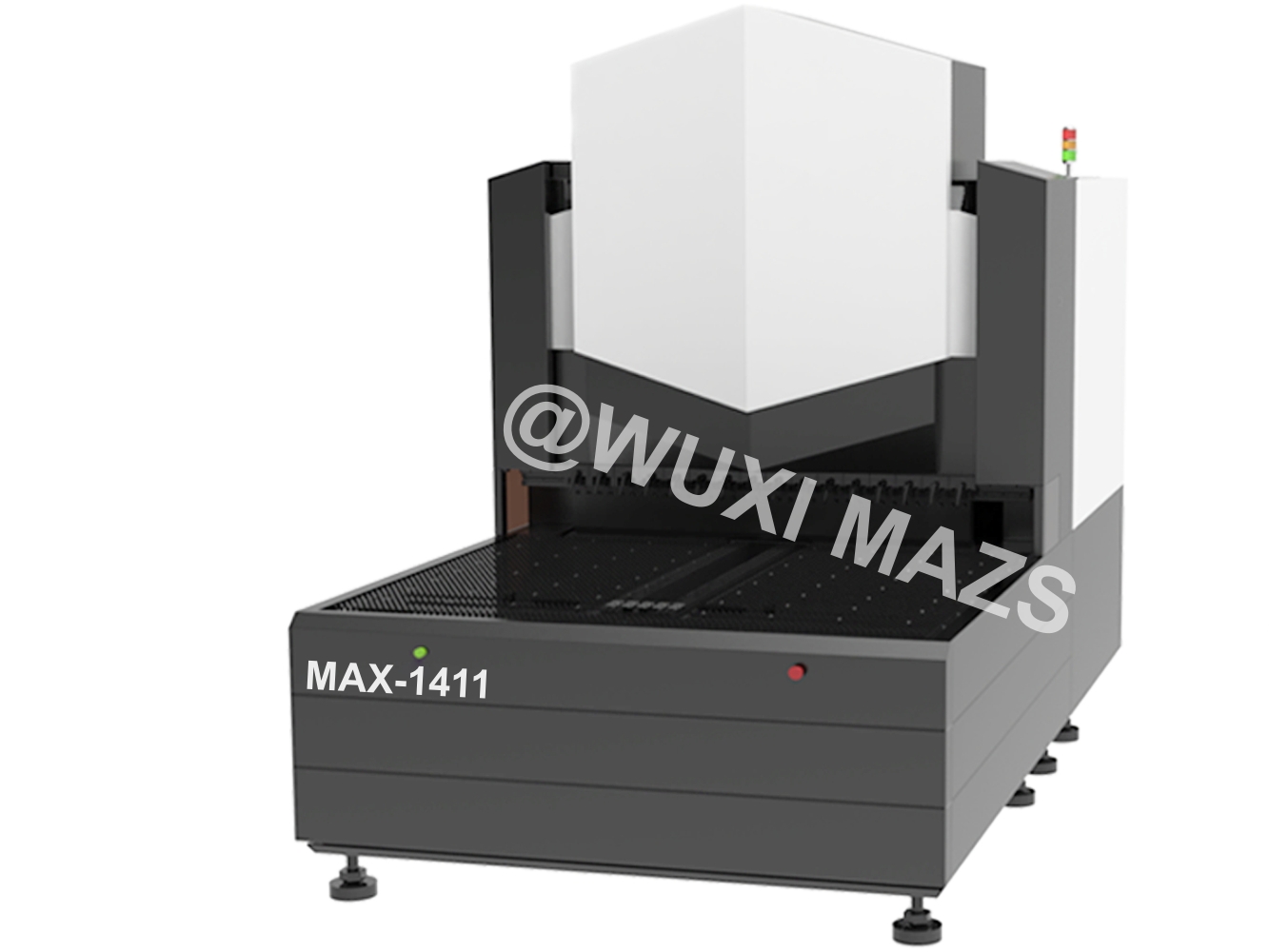

MAX-1411 Edge Bending Machine Achieve Accurate Bending For Kinds Of Metal Sheet
Product Description:
The MAX-1411 auto bender machine adopts the suction cup feeding method, designed to facilitate the handling and positioning of panels during the bending process. Here's how it works:
-
Panel Placement: The operator places the panel to be bent onto the worktable of the machine, ensuring that the panel surface is smooth and free from any holes or punches.
-
Suction Cup Activation: Once the panel is in position, the suction cup system is activated. The machine is equipped with one or more suction cups strategically placed to provide optimal suction and grip on the panel's surface.
-
Suction Cup Adhesion: The activated suction cup generates a vacuum that securely adheres to the smooth surface of the panel. This adhesion is strong enough to hold the panel firmly in place during the bending process.
-
Panel Movement: With the panel securely held by the suction cup, the machine's CNC control system initiates the necessary movements. This includes controlling the bending beam, back gauge, and other components as required for the desired bending operations.
-
Bending Process: As the machine executes the bending operations, the suction cup maintains a reliable grip on the panel. It prevents any unwanted movement or slippage, ensuring accurate and consistent bending results.
-
Panel Release: Once the bending process is completed, the suction cup's vacuum is released, allowing the operator to easily remove the bent panel from the worktable.
By utilizing the suction cup feeding method, the MAX-1411 auto bender machine optimizes panel handling and positioning. It eliminates the need for additional fixtures or clamps, streamlines the workflow, and enhances the overall efficiency of the bending process.
Techncial Parameters:
| Description | Technical Specifications |
| Machine name | MAX-1411 |
| Bending speed | 0.2 second /time |
| Max. bending width | 1400mm |
| Max. bending height | 170mm |
| Rated voltage | 380v |
| Total motor power | 34Kw |
| Average power | about 1.5Kw |
| Noise | about 50dB |
| Machine size | 365*190*290cm |
| Total machine weight | about 10 t |
| Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 1.0mm |
| UST 410N/mm2 cold panel 1.2mm |
| UST 265N/mm2 aluminum panel 1.6mm |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 140*210mm |
| Double sides forming minimum inner size | 140mm |
| Max. bending size | 1400*1400mm |
| Axis QTY | Standard 11 axis |
| Hinge knife | common |
Features:
- The bending of all workpieces can be completed through a complete set of tools.
- The interactive area of the tools of the panel bender on the surface of the metal plate is very small.
- There are few scratches on the surface of the workpiece produced in this way.
- The tool wear of the CNC sheet metal folding machine is also very small because the friction between the tool and the metal surface is small.
- The whole process of the CNC sheet metal folding machine can be carried out automatically, which saves human resources.
- The bending angle change of the CNC sheet metal folding machine is formed by the movement of the upper and lower blades.
- The CNC sheet metal folding machine has an automatic tool changer, which can quickly change tools to adjust the bending angle.
Product Examples:
MAZS intelligent panel bender adopts universal bending mold, cost-saving and better efficiency . It could be used for various types of panel shape.
Applications:
This automatic intelligent bending center can be widely used in steel cabinet shell (eg. file cabinet, tool cabinet, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...), kitchenware (refrigerator, air conditioner, stove...), metal forming problems in furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related fields.
Wuxi MAZS can produce various models with bend sizes of 1400mm, 2000mm and 2500mm, and 3200mm.
Production Capacity:
Wuxi MAZS Machinery Science & Technology Co., Ltd., a high-tech enterprise, is mainly engaged in the R&D, production and sales of intelligent flexible bending centers, self-propelled integrated robotic arms, multi-axis synchronized intelligent numerical control systems , and cloud operation and maintenance management platforms.
The company has famous brand gantry boring and milling center, more than 10 sets of horizontal machining center, vertical machining center, large horizontal boring and milling machine, more than 20 sets of FANUC high-precision slow-feeding machine tools, and Hangzhou grinding machine and many other processing equipment.
Packaging & Delivery:
Automatic bending machine packaging and transportation:
- Packaging: The CNC bending machines are safely packed and securely secured with polystyrene foam and other protective materials to provide protection from shock and vibration and prevent machine damage during transportation.
- Transportation: The CNC bending machines are usually transported by sea, and the actual transportation method depends on customer requirements and destinations.
Support & Services:
Our Automatic Sheet Metal Panel Bender offers comprehensive technical support and service. We provide efficient, reliable and quality services to our customers. Our technical support team is available 24/7 and provides:
-
Troubleshooting assistance
-
Installation and setup guidance
-
Software and hardware updates
-
Product maintenance and repair
-
User manual and documentation
-
FAQs and support forums
-
Live chat and telephone support
FAQ:
Q1. What's your main product? What is your main foreign market?
A: Our main products are intelligent automatic CNC panel bender, bending machine. Our main foreign markets are Asia, Middle East, North America, Europe, and Africa.
Q2. What are the advantages of your machines? And how can I believe the quality of your product?
A: The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. Each machine will be tested as qualified before delivery. So the quality of our product is stable and reliable.
Q3. Are you able to update the production process Information in time after placing our order?
A: After confirming your order, we would keep you updated of production details of emails and photos.
Q4. Payment terms?
A: Usually we prefer T/T, L/C, and about other payment terms could be discussed.
Q5. Are you provide product metal parts and provide us technical guidance?
A: Wearing parts, Disassembly tool are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.
Q6. How long is your warranty?
A: 1 years free warranty, life-long maintenance.
