1400mm Automatic Bending Center Mininium Panel 0.35mm CNC Panel Bender

Wuxi MAZS Machinery Science and Technology Co.,Ltd.
Contact Now

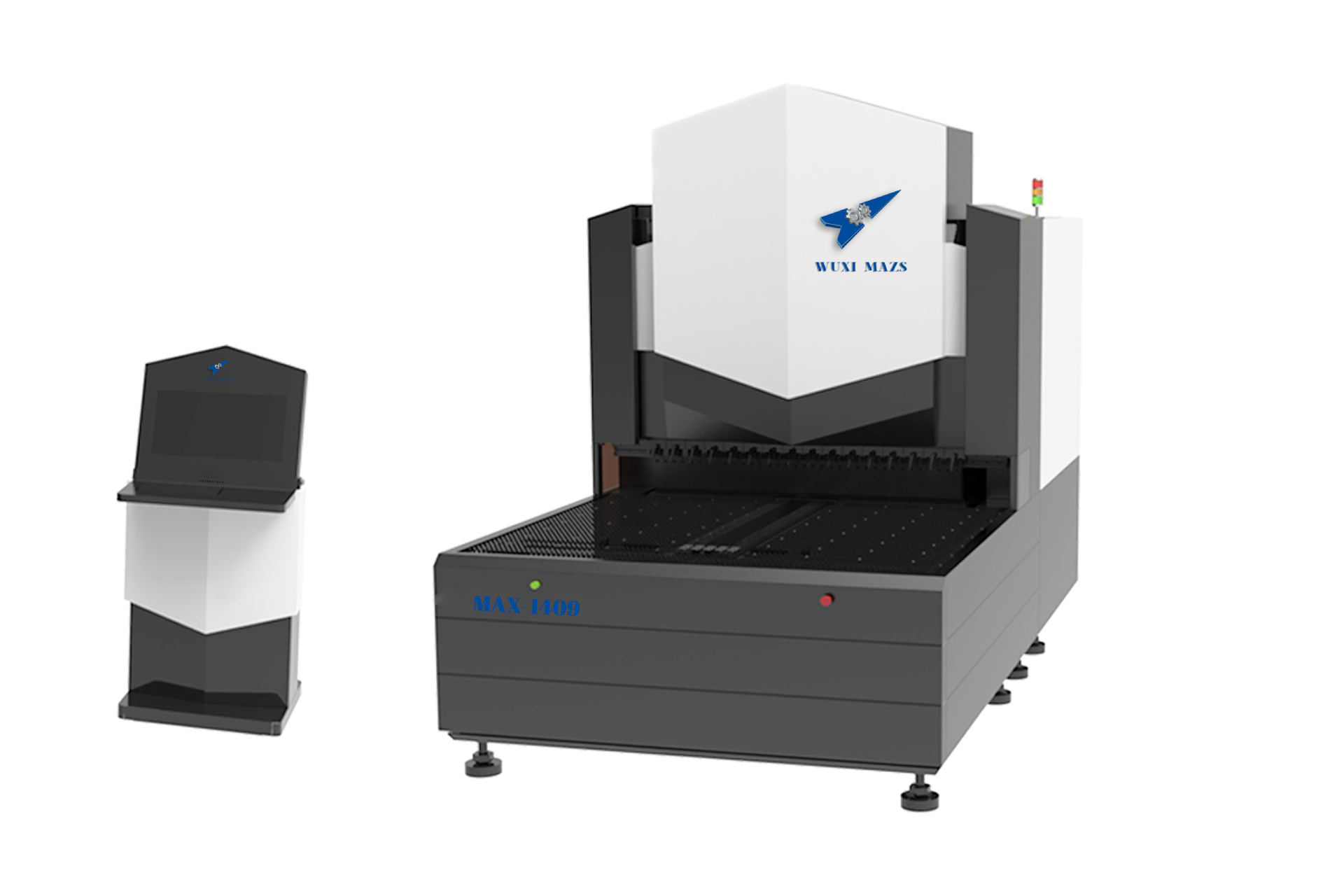

1400mm Automatic Bending Center Mininium Panel 0.35mm CNC Panel Bender

Brand Name : MAZS

Model Number : MAX-1409

Place of Origin : China

Certification : CE, ISO

MOQ : 1 Set

Packaging Details : wooden case, polystyrene foam and other protective materials suitable for sea transportation

Delivery Time : 60 days to 120 days

Payment Terms : T/T or L/C

Supply Ability : 50 to 60 sets per month

Price : RMB/USD/EURO

Max Bending Angle : 180°

Axis Positioning Accuracy : ±0.02mm

Max Bending Length : 1400mm

Control System : CNC

Max Bending Capacity : 1.6mm

Axis Number : 9

Product Name : Automatic Bending Center

Dimensions : 3650*1900*2900mm

Contact Now

1400mm Sheet Metal Panel Bender with Min. Panel Thickness 0.35mm

Product Description:

The Intelligent Automatic Bending Centre has developed a servo-driven flexible bending centre. It is developed and produced independently, ranging from software drivers, hardware circuits, to mechanical structures.
It is a high-tech product that has been designed to improve the production efficiency while reducing labor intensity and enhancing corporate image. It covers a number of ten industries and has met with many consumers' unanimous praises.
Its buyers are both from domestic and overseas markets.

Features:

Universality: A universal bending tool is a versatile tool that can be used to create various shapes, including straight bends, bends, and complex shapes. This feature allows for greater flexibility in production and reduces the need for multiple tools.
Interchangeability: Universal bending tools are designed to be easily interchangeable with other tools, reducing setup time and increasing production flexibility. This feature allows for faster tool replacement and reduces downtime between batches.
Precision: Universal bending tools aim to achieve high-precision and high-precision bending and forming of metal sheets. This feature ensures that the final product meets the required specifications and reduces the need for rework.
Cost reduction: Universal bending tools are an economical and efficient solution for bending and forming metal sheets. Its versatility and interchangeability reduce the need for multiple tools, thereby reducing tool costs. Its accuracy is reduced.

Technical Parameters:

Item
Technical Parameters

Feeding method

Suction cup

Max. bending speed
0.2 second/time
Max. bending width
1400mm
Max. bending hight
170mm
Rated voltage
380v
Motor total power
34Kw
Average power
about 1.5Kw
Noise
about 50dB
Machine size
365* 190*290cm
Total machine weight
about 10t
Max. bending thickness
(thicker panel customizable)
UST 5 1 5 N/ mm2 3 0 4 stainless steel 1 . 0 mm
UST 4 1 0 N/ mm2 cold panel 1 . 2 mm
UST 265N/ mm2 aluminum panel 1 . 6mm
Minimum panel thickness
0.35mm
Four sides forming, minimum inner size
140* 210mm
Double sides forming minimum inner size
140mm
Max. bending size
1400* 1400mm
Axis QTY
standard synchronized 9 axises
Hinge knife
common hinge knife
1400mm Automatic Bending Center Mininium Panel 0.35mm CNC Panel Bender

Applications:

Automatic Bending Center is a powerful machine designed to boost productivity and decrease labor costs in sheet metal fabrication processes. This cutting-edge machine can be used for manufacturing items such as:
• Cabinets (file, tool, electrical, communication, gas, water meter)
• Kitchenware (refrigerator, air conditioning, stove)
• Furniture
• Ventilation, refrigeration and purification products
• Doors
• Interior/exterior decorations
• Elevators
And more! The wide-ranging versatility of the Automatic Bending Center allows it to be used in numerous industries.

1400mm Automatic Bending Center Mininium Panel 0.35mm CNC Panel Bender

Bending Examples:

The intelligent flexible bending center uses universal bending mold. Various shapes of bending can be achieved by use of one set of mold. No need to make other customized molds.
It can easily achieve sheet metal bending requirements for circular arc, crushed / pressed edge, loop shape, closed shape, and other complex shapes.
1400mm Automatic Bending Center Mininium Panel 0.35mm CNC Panel Bender

Support and Services:

Automatic Bending Center Technical Support & Service:

At our company, we provide comprehensive technical support and service for our Automatic Bending Center. Our technicians are highly experienced and knowledgeable in all aspects of the product and are always available to answer any questions you may have. We offer a variety of services to ensure that your Automatic Bending Center is running optimally and safely.

- 24/7 customer support and technical assistance

- On-site installation and repair

- Regular preventative maintenance and inspections

- Regular software and hardware updates

- Remote monitoring and diagnostics

Packing and Shipping:

Packaging and Shipping for Automatic Bending Center:
The Automatic Bending Center must be packaged properly to ensure it is protected during the shipment. The following are the steps to properly package the product:
- Check for any loose parts in the product and fasten them securely.
- Wrap the product with bubble wrap and secure it with tape.
- Place the product in a container made of strong material such as wood or metal.
- Fill the container with packing materials such as foam or styrofoam to ensure the product is stable.
- Seal the container and mark it as fragile.
- Ship the product using a reliable shipping service.

1400mm Automatic Bending Center Mininium Panel 0.35mm CNC Panel Bender

FAQ:

Q: What is MAZS Automatic Bending Center?

A: MAZS Automatic Bending Center is a machine tool for automatic bending of sheet material with a maximum thickness of 10mm.

Q: What is the model number of MAZS Automatic Bending Center?

A: The model number is MAX-**09.

Q: Where is MAZS Automatic Bending Center from?

A: MAZS Automatic Bending Center is from China.

Q: What certifications does MAZS Automatic Bending Center have?

A: MAZS Automatic Bending Center has IE and ISO certifications.

Q: How many MAZS Automatic Bending Centers can be supplied per month?

A: MAZS Automatic Bending Centers can be supplied 50 to 60 sets per month.
