MAX-1009 CNC Automatic Bending Center For Aluminum Plate 1.6mm Thickness

Wuxi MAZS Machinery Science and Technology Co.,Ltd.
Contact Now

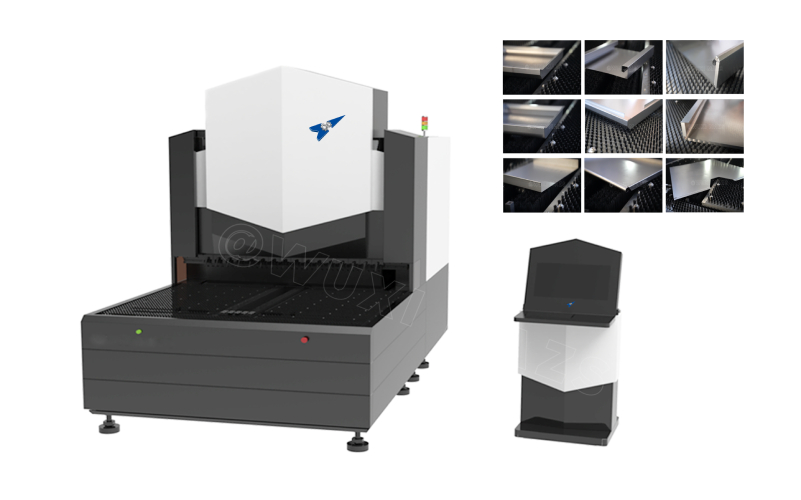

MAX-1009 CNC Automatic Bending Center For Aluminum Plate 1.6mm Thickness

Brand Name : MAZS

Model Number : MAX-**09

Place of Origin : China

Certification : CE, ISO

MOQ : 1 Set

Packaging Details : wooden case, polystyrene foam and other protective materials suitable for sea transportation

Delivery Time : 60 days to 120 days

Payment Terms : T/T or L/C

Supply Ability : 50 to 60 sets per month

Price : RMB/USD/EURO

Product Name : Automatic Bending Center

Feeding method : Suction cup

Axis Number : 9

Rated Bending Speed : 0.2 Second/time

Axis Positioning Accuracy : ±0.02mm

Power Supply : AC380V/50Hz

Motor Power : 25KW

Power Consumption : 1.5KW

Contact Now

MAX-1009 CNC Automatic Bending Center for Aluminum Plate 1.6mm Thickness

Product Description:

The Intelligent automated bending center has made a breakthrough in the sheet metal industry. It has developed its own servo flexible bending center, starting from software drivers, hardware circuits to mechanical structure. The center is a high-tech product with its purpose to improve production efficiency, reduce labour intensity and ultimately enhance corporate image.
The panel bender has become a big hit with consumers from domestic and overseas markets. It provides great coverage to industries of up to ten, further establishing its reputation as an invaluable tool for the sheet metal industry.

Features:

- Fully automatic bending, high efficiency, energy saving and environmental protection.
- Bus control, which can be directly connected to the IOT(Internet of Things) for remote control and monitoring.
- Special high-load screw and guide rail structure, high load-bearing capacity, high positioning accuracy and long life.
- Fully automatic lubrication system, maintenance-free.
- C-arm feeding structure design, double servo rotation up and down, automatic downward press structure, rapid downward press, adjustable pressure, high rotation positioning accuracy.

Technical Parameters:

Item
Technical Parameters
Max. bending speed
0.2 second/time
Max. bending width
1000mm
Max. bending hight
170mm
Rated voltage
380v
Motor total power
25Kw
Average power
about 1. 1Kw
Noise
about 50dB
Machine size
285* 150* 280cm
Total machine weight
about 7t
Max. bending thickness
(thicker panel customizable)
UST 5 1 5 N/ mm2 3 0 4 stainless steel 1 . 0 mm
UST 4 1 0 N/ mm2 cold panel 1 . 2 mm
UST 265N/ mm2 aluminum panel 1 . 6mm
Minimum panel thickness
0.35mm
Four sides forming, minimum inner size
140* 210mm
Double sides forming minimum inner size
140mm
Max. bending size
1000* 1000mm
Axis QTY
standard synchronized 9 axises
Hinge knife
common hinge knife
MAX-1009 CNC Automatic Bending Center For Aluminum Plate 1.6mm Thickness

Applications:

The automatic bending center is an advanced machine especially developed to improve productivity and minimize labor costs for sheet metal production. It is capable of being applied to a broad range of industries, including but not limited to cabinet-making, kitchenware production, furniture production, ventilation, refrigeration, purification, door industry, decoration and elevator industries.

For instance, it can be used to fabricate all sorts of cabinets (e.g. file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet, etc.), kitchenware (e.g. refrigerator, air conditioning, stove, etc.), as well as other related metal forming products.

MAX-1009 CNC Automatic Bending Center For Aluminum Plate 1.6mm Thickness

Bending Examples:

The intelligent flexible bending center uses universal bending mold. Various shapes of bending can be achieved by use of one set of mold. No need to make other customized molds.

MAX-1009 CNC Automatic Bending Center For Aluminum Plate 1.6mm Thickness

Support and Services:

MAZS provides:

* Safe stock spare parts

Provide users with complete inventory of spare parts, ensuring that accessories and wearing parts are replaced in time, it provides protection for daily production for users.

* 7x24 Online service

Provide 7x24 hours of after-sales online service to maximize the protection of users' daily production plans, and realize worry free after-sales problems.

* Lifetime service tracking

Establish an user profile with an unique device code, track and record device usage details, and provide lifetime maintenance services for cooperative users.

Packing and Shipping:

Packaging and Shipping for Automatic Bending Center:
* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.

MAX-1009 CNC Automatic Bending Center For Aluminum Plate 1.6mm Thickness

FAQ:

Q:What is the brand name of Automatic Bending Center?
A:The brand name is MAZS.
Q:What is the model number of Automatic Bending Center?
A:The model number is MAX-**09.
Q:Where is the Automatic Bending Center from?
A:The Automatic Bending Center is from China.
Q:What certifications does the Automatic Bending Center have?
A:The Automatic Bending Center has IE and ISO certifications.
Q:What is the minimum order quantity?
A:The minimum order quantity is 1 set.
