CNC Automatic Panel Bender Panel Bending Machine 2MM SS Sheet For Complex Bending

Wuxi MAZS Machinery Science and Technology Co.,Ltd.
Contact Now

CNC Automatic Panel Bender Panel Bending Machine 2MM SS Sheet For Complex Bending

Brand Name : MAZS

Model Number : MAY-**15

Place of Origin : China

Certification : CE, ISO

Packaging Details : Pallet, wooden case and other standard export packaging

Delivery Time : 60~120 days

Payment Terms : T/T, L/C

Supply Ability : 50 ~60 sets per month

MOQ : 1 Set

Price : RMB/USD/EURO

Product Name : CNC bending machine

Waterproof rating : IPX-8

Suitable material : Copper, aluminum, alloy, carbon steel, stainless steel

Feeding method : Pressing arm

Standard axis quantity : 15

Max. bending size : 1400* 1400mm

Min. panel thickness : 0.35mm

Warranty : 1 Year

Contact Now

Automated High-Accuracy CNC Panel Bender For Complex Bending With Pressing Arm Feeding

Product Description:

MAY-**15 series intelligent panel bender adopts pressing arm feeding method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.

Features:

- Automatic reposition, oblique reposition;
- Improved C axis rotation speed and accuracy;
- Standard power hinge knife;
- Special tooling structure and pneumatic upper pressing tooling ,which can bending more thicker panel.

Technical Parameters:

Items Technical Parameters for MAY-1415 Panel Bending Center
Feeding method Pressing arm
Positioning method Y axis double lift automatic positioning tools
Max. bending speed 0.2 s/time
Max. bending width 1400mm
Max. bending height 170mm
Rated voltage 380V
Total motor power 40Kw
Average power about 1.9Kw
Noise 50dB
Machine size 440*190*290cm
Total machine weight about 12t
Max. bending thickness (thicker panel customized) UST 515N/mm2 304 stainless steel 2.0mm
UST 410N/mm2 cold panel 3.0mm
Minimum panel thickness 0.35mm
Four sides forming minimum inner size 160* 210mm
Double sides forming minimum inner size 160mm
Max. bending size 1400* 1400mm
Axis qty. standard synchronized 15 axis
Power hinge knife standard

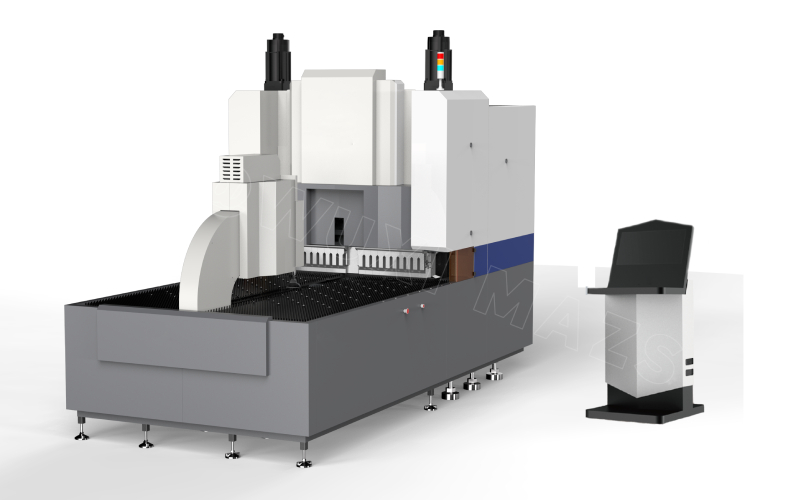

CNC Automatic Panel Bender Panel Bending Machine 2MM SS Sheet For Complex Bending

Applications:

MAZS metal sheet bender can be widely applied in following industried:
Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...
Kitchenware: refrigerator, air conditioning, stove...
Furniture
Electrical cabinets
Decorations

Support and Services:

1. After the equipment is checked and accepted, the quality guarantee period of the whole machine is one year.
2. During the warranty period of the equipment, our company is responsible for free replacement or maintenance of parts due to the quality of the equipment itself, except for conventional consumables (such as suction cups) and those that are responsible for the user's illegal operation.
3. Our company provides life-long maintenance services for the products provided, and provides daily consultation and guidance related to equipment at any time. Outside the warranty period, our company still provides extensive and preferential technical support and spare parts supply for the buyer. For each device, our company will establish a uniquely coded "user profile" to track and record the relevant information of the user using the equipment. Our company will promptly notify the buyer of the software upgrade situation. Except for new requirements, we provide daily software upgrade services free of charge.
4. Our company has sufficient spare parts and accessories, which can provide technical services and spare parts services to the buyer in time to meet the needs of equipment maintenance.

Packing and Shipping:

Packaging and Shipping for CNC Bending Machine:
* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.

FAQ:

Q1: What is the feeding type of CNC Bending Machine?
A1: MAY-**15 series intelligent panel bender adopts pressing arm feeding method.
Q2: How many axis it uses?
A2: Standard axis quantity is 15.
Q3: What kind of work pieces are the CNC Bending Machine suitable for?
A3: It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.
Q4: What is the packaging details of the CNC Bending Machine?
A4: The Packaging Details of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.
Q5: What certification does it have?
A5: ISO 9001:2000, ISO 9001:2008, CE.
