European Standard CNC Panel Bender Automatic Tooling Change Panel Bending Machine For Sheet Metal Processing
Product Description:
MAX, MAY Series CNC Panel Bender can help to fabricate a variety of metal components. The feeding mode has two types, which are pressing arm type and suction cup type. It adopts CNC control and input the designed parameters, the bending center operates easily with automatic loading and unloading.
Pressing arm feeding type:
Suction cup feeding type:
Features:
* Equip with universal bending tools.
* Stable and reliable quality.
* Proprietary algorithm managing tools path.
* Exact and constant bending movements guaranteed .
* Scrap reduction.
* Reliable machine performance.
* Provide automatic and flexible bending solution.
* Easy and convenient maintenance with low cost.
* Lower power consumption.
* Multiple selection of shapes making.
Technical Parameters:

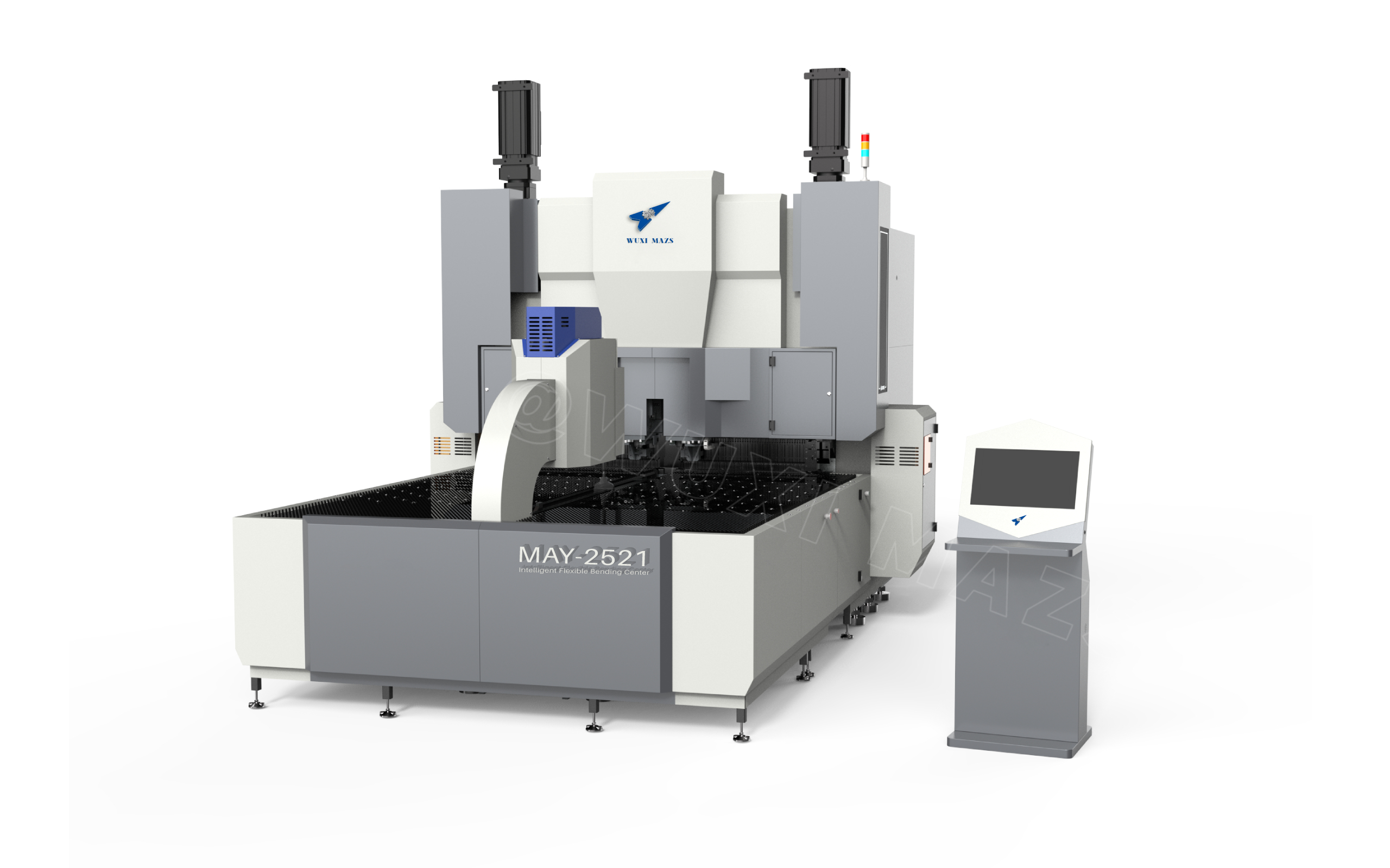

Pressing arm feeding type:
| Items | Technical Parameters for Panel Bending Center |
| MAY-2021 | MAY-2521 |
| Feeding method | Pressing arm | Pressing arm |
| Tooling change | Automatic tooling change | Automatic tooling change |
| Max. bending speed | 0.2 s/time | 0.2 s/time |
| Max. bending width | 2000mm | 2500mm |
| Max. bending height | 170mm | 170mm |
| Rated voltage | 380V | 380V |
| Total motor power | 82Kw | 82Kw |
| Average power | about 2.9Kw | about 3.0Kw |
| Noise | about 50dB | about 50dB |
| Machine size | 515*331*330cm | 565*320*340cm |
| Total machine weight | about 16t | about 19t |
| Max. bending thickness (thicker panel customized) | UST 515N/mm2 304 stainless steel 1.5mm | UST 515N/mm2 304 stainless steel 1.5mm |
| UST 410N/mm2 cold panel 2.0mm | UST 410N/mm2 cold panel 2.0mm |
| UST 265N/mm2 aluminum panel 3.0mm | UST 265N/mm2 aluminum panel 3.0mm |
| Minimum panel thickness | 0.35mm | 0.35mm |
| Four sides forming minimum inner size | 140*190mm | 140*190mm |
| Double sides forming minimum inner size | 140mm | 140mm |
| Max. bending size | 2000*1500mm | 2500*1500mm |
| Axis qty. | standard synchronized 21 axis | standard synchronized 21 axis |
| Power hinge knife | standard | standard |

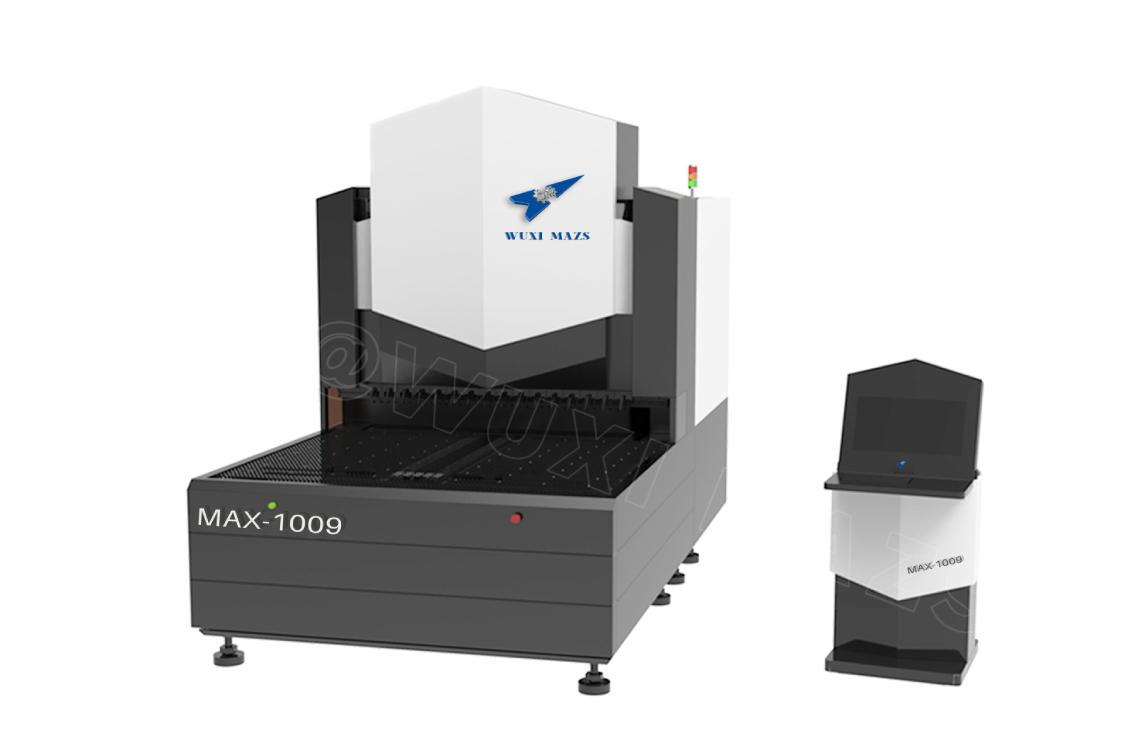

Suction cup feeding type:
| Items | Technical Parameters for Panel Bending Center |
| MAX-1009 | MAX-1409 |
| Feeding method | Suction cup | Suction cup |
| Work table structure | brush | brush |
| System minimum accuracy | 0.001mm | 0.001mm |
| Positioning method | Y axis three positioning rulers | Y axis three positioning rulers |
| Max. bending speed | 0.2 s/time | 0.2 s/time |
| Max. bending width | 1000mm | 1400mm |
| Max. bending height | 170mm | 170mm |
| Rated voltage | 380V | 380V |
| Total motor power | 25Kw | 34Kw |
| Average power | about 1.1Kw | about 1.5Kw |
| Noise | 50dB | 50dB |
| Machine size | 285*150*280cm | 365*190*290cm |
| Total machine weight | about 7t | about 10t |
| Max. bending thickness (thicker panel customized) | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm | UST 4 1 0 N/ mm2 cold panel 1 . 2 mm |
| UST 265N/ mm2 aluminum panel 1.6mm | UST 265N/mm2 aluminum panel 1.6mm |
| Minimum panel thickness | 0.35mm | 0.35mm |
| Four sides forming minimum inner size | 140*210mm | 140*210mm |
| Double sides forming minimum inner size | 140mm | 140mm |
| Max. bending size | 1000* 1000mm | 1400* 1400mm |
| Axis qty. | standard synchronized 9 axis | standard synchronized 9 axis |
| Hinge knife | common hinge knife | common hinge knife |
Note: the above technical parameters are the basic information, for more details, please feel free to contact us.
Real Folding Sheets Forming Display:
MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
Application:
MAZS metal sheet bender can be widely applied in following industried:
√ Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...
√ Kitchenware: refrigerator, air conditioning, stove...
√ Furniture
√ Electrical cabinets
√ Decorations
Support and Services:
MAZS provides:
* Safe stock spare parts
Provide users with complete inventory of spare parts, ensuring that accessories and wearing parts are replaced in time, it provides protection for daily production for users.
* 7x24 Online service
Provide 7x24 hours of after-sales online service to maximize the protection of users' daily production plans, and realize worry free after-sales problems.
* Lifetime service tracking
Establish an user profile with an unique device code, track and record device usage details, and provide lifetime maintenance services for cooperative users
Packing and Shipping:
Packaging and Shipping for CNC Bending Machine:
* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.
FAQ:
Q1: What is the feeding type of CNC Bending Machine?
A1: MAX-**11 series intelligent panel bender adopts suction cup feeding method.
Q2: How many axis it has?
A2: Standard axis quantity is 9, 11, 15, 16, 18, 21, etc.
Q3: What kind of work pieces are the CNC Bending Machine suitable for?
A3: It is suitable for mesh, corrugated, hollow and all kinds of flat or special-shaped work pieces.
Q4: Do you accept customer Logo and customized?
A4: The Packaging Details of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.
Q5: What certification does it have?
A5: ISO 9001:2000, ISO 9001:2008, CE.
