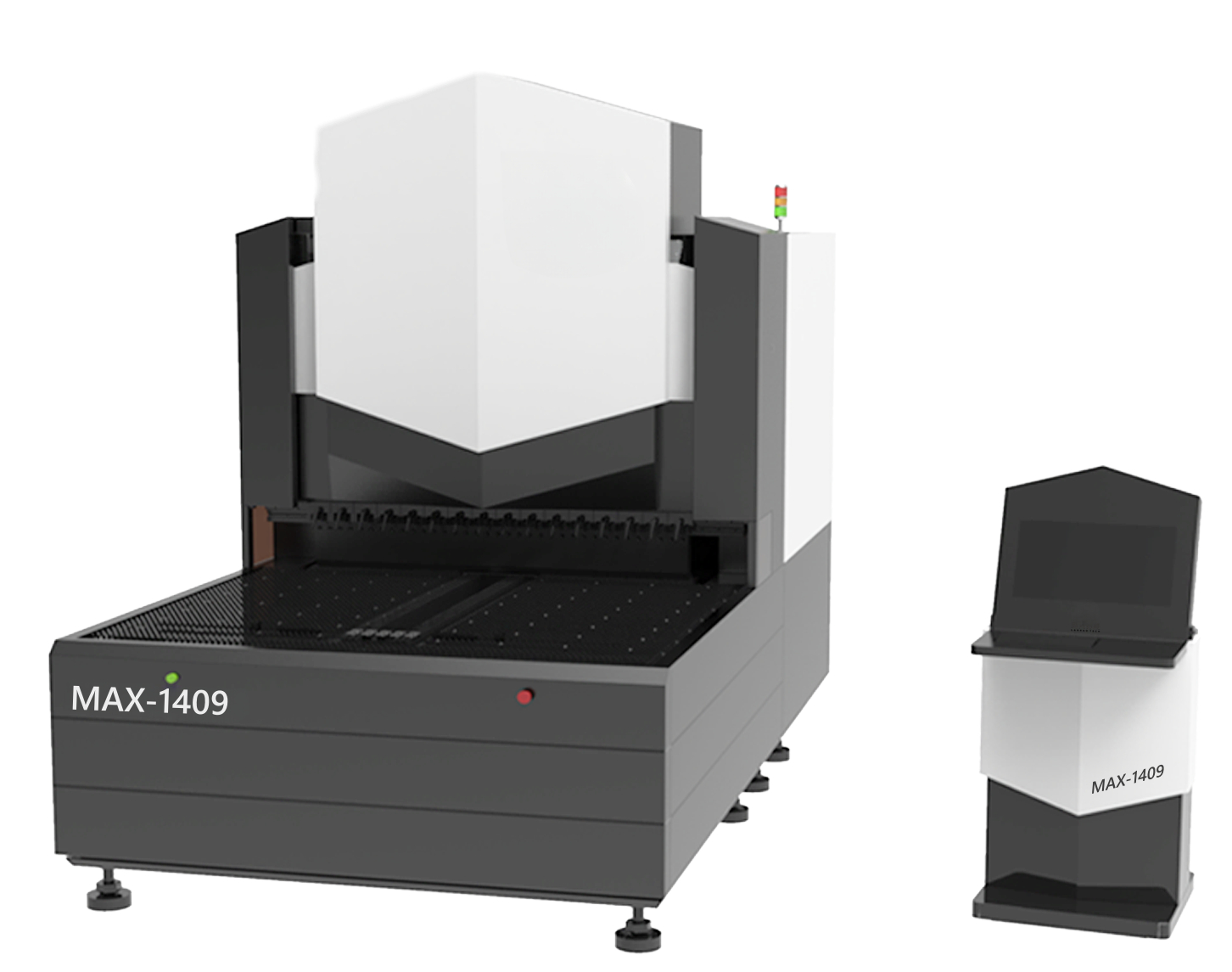

MAX-1409 CNC Panel Bender Automatic Sheet Bending Machine Bending Height 170mm
Product Description:
MAY-1409 intelligent flexible bending center is used for sheet metal fabrication. Automated and semi-automated processes such as CNC panel bending, which use CAD and CAM drawings, produce metal pieces with tight tolerances.
Features:
* Industry 4.0 architecture, which can be upgraded smoothly.
* Fast speed, only 0.2 seconds per time.
* Rapid prototyping of sheets, high consistency.
* Low power consumption.
* Simple maintenance and low cost.
* High degree of automation, simple operation, low labor requirements.
* No need for molding, complex shapes (right angles, non-right angles, etc. folded up or down) can be freely designed and produced at any time.
* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.
* Compatible with various loading and unloading methods: manual loading and unloading, self-propelled robotic arm loading and unloading, docking robotic arm loading and unloading are optional.
* The control system realizes 21-axis concurrent linkage in the true sense, the bending action is smooth, and the mechanical operation is highly coordinated.
* The unbalanced load detection system can effectively protect the machine and the sheets.
* The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.
Technical Parameters:
| Items | Technical Parameters for MAX-1409Panel Bending Center |
| Feeding method | Suction cup |
| Positioning method | Y axis three positioning rulers |
| Max. bending speed | 0.2 s/time |
| Max. bending width | 1400mm |
| Max. bending height | 170mm |
| Rated voltage | 380V |
| Total motor power | 34Kw |
| Average power | about 1.5Kw |
| Noise | 50dB |
| Machine size | 365*190*290cm |
| Total machine weight | about 10t |
| Max. bending thickness (thicker panel customized) | UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm |
| UST 4 1 0 N/ mm2 cold panel 1 . 2 mm |
| UST 265N/mm2 aluminum panel 1.6mm |
| Minimum panel thickness | 0.35mm |
| Four sides forming minimum inner size | 140*210mm |
| Double sides forming minimum inner size | 140mm |
| Max. bending size | 1400* 1400mm |
| Axis qty. | standard synchronized 9 axis |
| Hinge knife | common hinge knife |
Bending Application Cases:
Bending Graphics
Bending Configuration
Real Folding Sheets Forming Display:
MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
Applications:
MAZS metal sheet bender can be widely applied in following industried:
√ Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...
√ Kitchenware: refrigerator, air conditioning, stove...
Support and Services:
MAZS provides:
* Safe stock spare parts
Provide users with complete inventory of spare parts, ensuring that accessories and wearing parts are replaced in time, it provides protection for daily production for users.
* 7x24 Online service
Provide 7x24 hours of after-sales online service to maximize the protection of users' daily production plans, and realize worry free after-sales problems.
* Lifetime service tracking
Establish an user profile with an unique device code, track and record device usage details, and provide lifetime maintenance services for cooperative users.
Packing and Shipping:
Packaging and Shipping for CNC Bending Machine:
* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.
FAQ:
Q1: What is the feeding type of CNC Bending Machine?
A1: MAY-**09 series intelligent panel bender adopts pressing arm feeding method.
Q2: How many axis it uses?
A2: Standard axis quantity is 9.
Q3: What kind of work pieces are the CNC Bending Machine suitable for?
A3: It is suitable for mesh, corrugated, hollow and all kinds of flat or special-shaped work pieces.
Q4: What is the packaging details of the CNC Bending Machine?
A4: The Packaging Details of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.
Q5: What certification does it have?
A5: ISO 9001:2000, ISO 9001:2008, CE.
