3200mm 18 Axis CNC Sheet Metal Panel Bender Hydraulic Sheet Metal Bender With Automatic Tool

Wuxi MAZS Machinery Science and Technology Co.,Ltd.
Contact Now

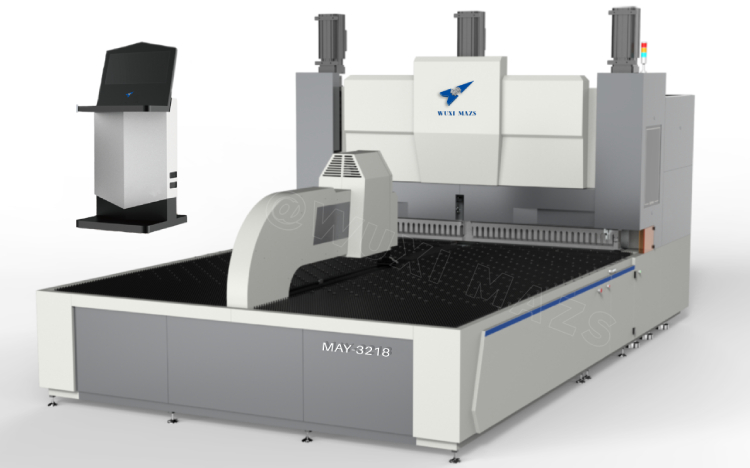

3200mm 18 Axis CNC Sheet Metal Panel Bender Hydraulic Sheet Metal Bender With Automatic Tool

Brand Name : MAZS

Model Number : MAY-**18

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set

Price : RMB/USD/EURO

Payment Terms : T/T, L/C

Supply Ability : 50 ~60 sets per month

Delivery Time : 60~120 days

Packaging Details : Pallet, wooden case and other standard export packaging

Product Name : CNC bending machine

Waterproof rating : IPX-8

Suitable material : Copper, aluminum, alloy, carbon steel, stainless steel

Feeding method : Pressing arm

Standard axis quantity : 18

Max. bending size : 2500*1500mm

Panel thickness : 0.35-3mm

Warranty : 1 Year

Contact Now

Product Description:

MAY-3218 CNC bending machine can bend the maximum panel size of 3200*1500mm and minimum panel thickness of 0.35mm. lt only needs one set of molds to complete bending of various shapes, such as ircular arc, crushed / pressed edge, loop shape, closed shape, and other complex shapes.

Features:

- Adjustable deflection compensation, increased panel thickness;
- Improved bending accuracy of thick plates;
- Quick release and quick installation of pressure tools;
- Standard electric hinge knife.
- The tooling is made of high-strength and high hardness alloy steel and super alloy steel, and can be traced;
- Provide automated loading and unloading solution;
- Fast speed, only 0.2 seconds per time;
- Rapid prototyping of sheets, high consistency;
- Low power consumption;
- Simple maintenance and low cost;
- High degree of automation, simple operation, low labor requirements;
- The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.

Technical Parameters:

Items
Parameters for MAY-3218 Panel Bending Center
Feeding method
Pressing arm
Positioning method
Y axis double lift automatic positioning tools
Max. bending speed
0.2 s/time
Max. bending width
3200mm
Max. bending height
170mm
Rated voltage
380V
Total motor power
113Kw
Average power
about 2.9Kw
Noise
50dB
Machine size
660*440*328cm
Total machine weight
about 27t
Max. bending thickness (thicker panel customized)
UST 515N/mm2 304 stainless steel 1.5mm
UST 410N/mm2 cold panel 2.0mm
UST 265N/mm2 aluminum panel 3.0mm
Minimum panel thickness
0.35mm
Four sides forming minimum inner size
140*190mm
Double sides forming minimum inner size
140mm
Max. bending size
3200*1500mm
Axis qty.
standard synchronized 18 axis
Power hinge knife
standard

3200mm 18 Axis CNC Sheet Metal Panel Bender Hydraulic Sheet Metal Bender With Automatic Tool

Bending Application Cases:

Graphic Bending Case

Bending Graphics

3200mm 18 Axis CNC Sheet Metal Panel Bender Hydraulic Sheet Metal Bender With Automatic Tool

Bending Configuration

3200mm 18 Axis CNC Sheet Metal Panel Bender Hydraulic Sheet Metal Bender With Automatic Tool

Real Folding Sheets Forming Display:

The intelligent flexible bending center uses universal bending mold. Various shapes of bending can be achieved by use of one set of mold. No need to make other customized molds.
It can easily achieve sheet metal bending requirements for circular arc, crushed / pressed edge, loop shape, closed shape, and other complex shapes.

3200mm 18 Axis CNC Sheet Metal Panel Bender Hydraulic Sheet Metal Bender With Automatic Tool

Applications:

MAZS metal sheet bender can be widely applied in following industried:
Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...
Kitchenware: refrigerator, air conditioning, stove...
Furniture
Electrical cabinets
Decorations
3200mm 18 Axis CNC Sheet Metal Panel Bender Hydraulic Sheet Metal Bender With Automatic Tool

Support and Services:

MAZS provides:
* Safe stock spare parts
Provide users with a complete inventory of accessories, ensure that accessories and wearing parts are replaced in time, and escort users' daily production.
* 7x24 Online service
Provide 7x24 hours of after-sales online services, maximize the protection of user’s daily production plans, realizing worryfree after-sale service.
* Lifetime service tracking
Establish a uniquely encoded user profile tracking and recording the details of the operation of the device, and providing lifelong maintenance services for cooperative users.

Packing and Shipping:

Packaging and Shipping for CNC Bending Machine:
* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.
3200mm 18 Axis CNC Sheet Metal Panel Bender Hydraulic Sheet Metal Bender With Automatic Tool

FAQ:

Q1: What is the feeding type of CNC Bending Machine?
A1: MAY-**15 series intelligent panel bender adopts pressing arm feeding method.
Q2: How many axis it uses?
A2: Standard axis quantity is 15.
Q3: What kind of work pieces are the CNC Bending Machine suitable for?
A3: It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.
Q4: What functions do it have?
A4: It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application.
Q5: What is the warranty time?
A5: one year.
